Specification

Type	Full Carbon Suspension MTB frame
Model	P1
Wheel Size	27.5er/29er
Material	100% carbon fiber Toray T700
Weave	UD Matt
Frame Travel	130mm
Brake	Front 180mm, Rear 160mm
Rear Shock	200*51mm
Frame Weight	2410g (M, UDM), 2445g(S, Pink)
Frame Size	M/L
Bottom Bracket	BSA
Headset	Top 1-1/8",down 1- 1/2"
Seatpost	31.6mm
Seatpost Clamp	34.9mm
Axle	148*12mm
Tire	27.5 2.8'' or 29 2.35'' If XDR groupset , 27.52.5" or 292.3'

Rear Shock Eye to Eye: 200*51mm or 200*57mm

Rear Shock Hardware: 22.2mmx8mm

Front Fork Travel: 130-140mm for 29er wheels (140-150mm for 27.5 plus wheels)

Disc Rotor size:160mm

Supported Rear Shock ：

FOX Float DPS Factory
Rockshox Monarch 200*51mm

Ready to build up your own light and durable carbon Trail/AM MTB frame? Or upgrade your current frame? No better place to start than with a quality and affordable carbon frame. This P1 frame from ICAN Cycling is a light in durable options for those looking for a full suspension with 130mm rear travel. Built with triple enforced T800 Carbon, a 31.6 seat tube for wider posts and dropper posts, and equipped with a durable, stiff, and low maintenance and durable BSA English Threaded bottom bracket, this frame is for those looking to be efficient, yet bomb decents with some big jumps thrown in.

This frame is designed in the style of Trek Fuel, and can take 29er or 27.5+ wheels. The frame can take up 130-140mm fork in the front with 29er wheels and 140-150mm fork with 27.5+ wheels.

Can I use a 68mm bsa bottom bracket for a size large P1 frame?

Yes.

XS-2350+-40g (UD Matt )

S-2380+-40g (UD Matt )

M-2430+-40g (UD Matt )

L-2470+-40g (UD Matt )

XL-2490+-40g (UD Matt )

The whole mountain bike world has gone boost crazy. This has probably made you feel like you want a boost frame. The only thing to hold you back has cost, well now we have built you the solution to your problem. Behold our carbon fibre full suspension boost mountain bike frame.

To keep prices down, we have concentrated on our R&D and not our marketing department or fancy name professionals. Nope, we are only interested in creating the best carbon fibre cycling products for you. Our boost frameset perfectly fits that mentality by being entirely up to date, very high quality and high tech but it does not feature a high price tag.

Instead of building with dollar or pound signs it comes bulging with features. The frame is constructed from Toray T700 carbon fibre. Allowing our engineers to create a lightweight and stiff frame. They have achieved extra stiffness by using a 148mm by 12mm rear end. Making it possible for the frame to become wider; this helps to stiffen up pivot joints and make them longer lasting.

With 130mm of travel and a BSA bottom bracket, you can be sure that this frame will be capable of taking you anywhere with a nice amount of travel and a reliable bottom bracket system. To add to the reliability, we have used our famous internal routing system for making sure your cables and hoses can be fitted quickly and easily.

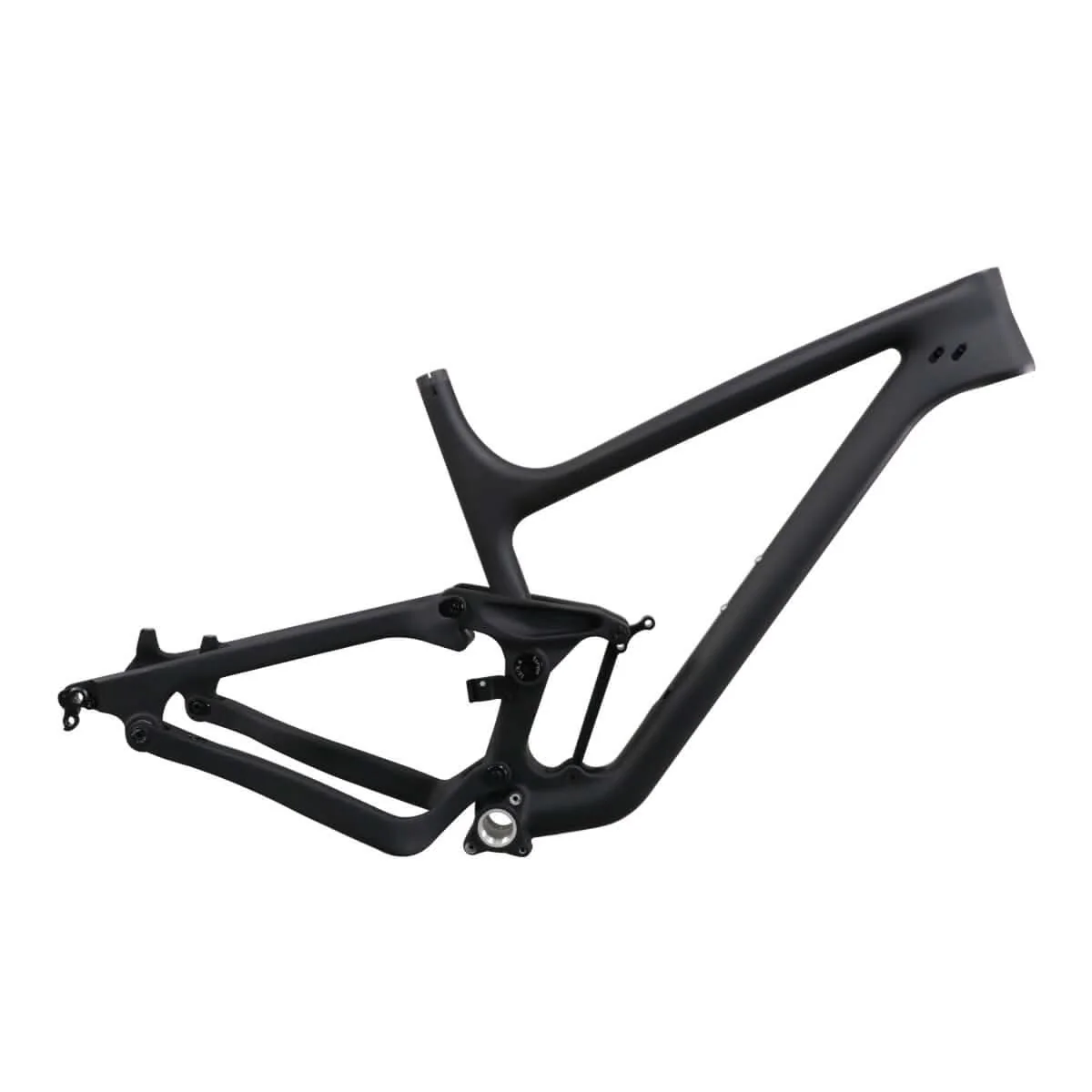

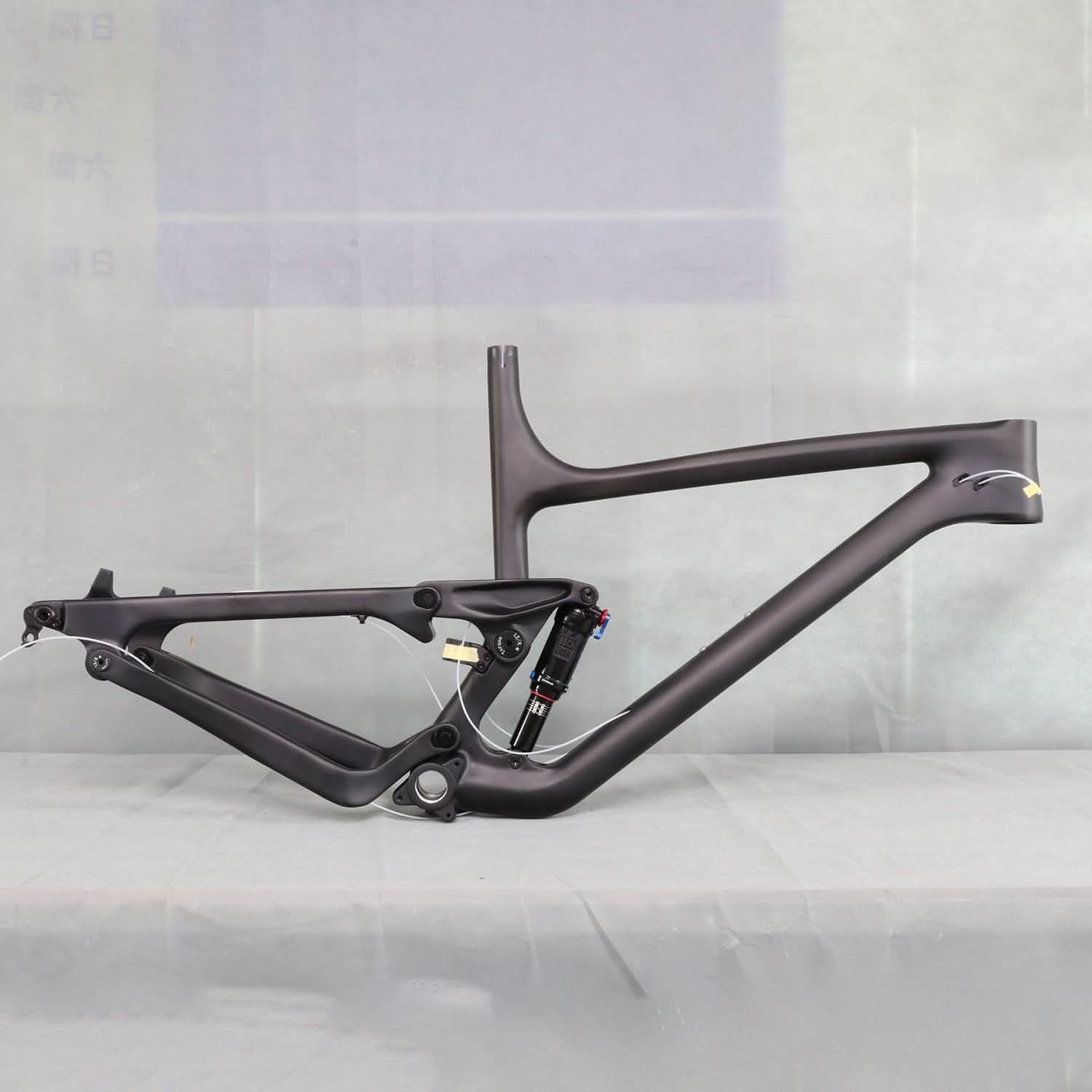

ICAN P1 Frame

Trail MTB Frame P1 130mm 29er Travel Full Suspension

Trail MTB Frame P1 130mm 29er Travel Full Suspension
