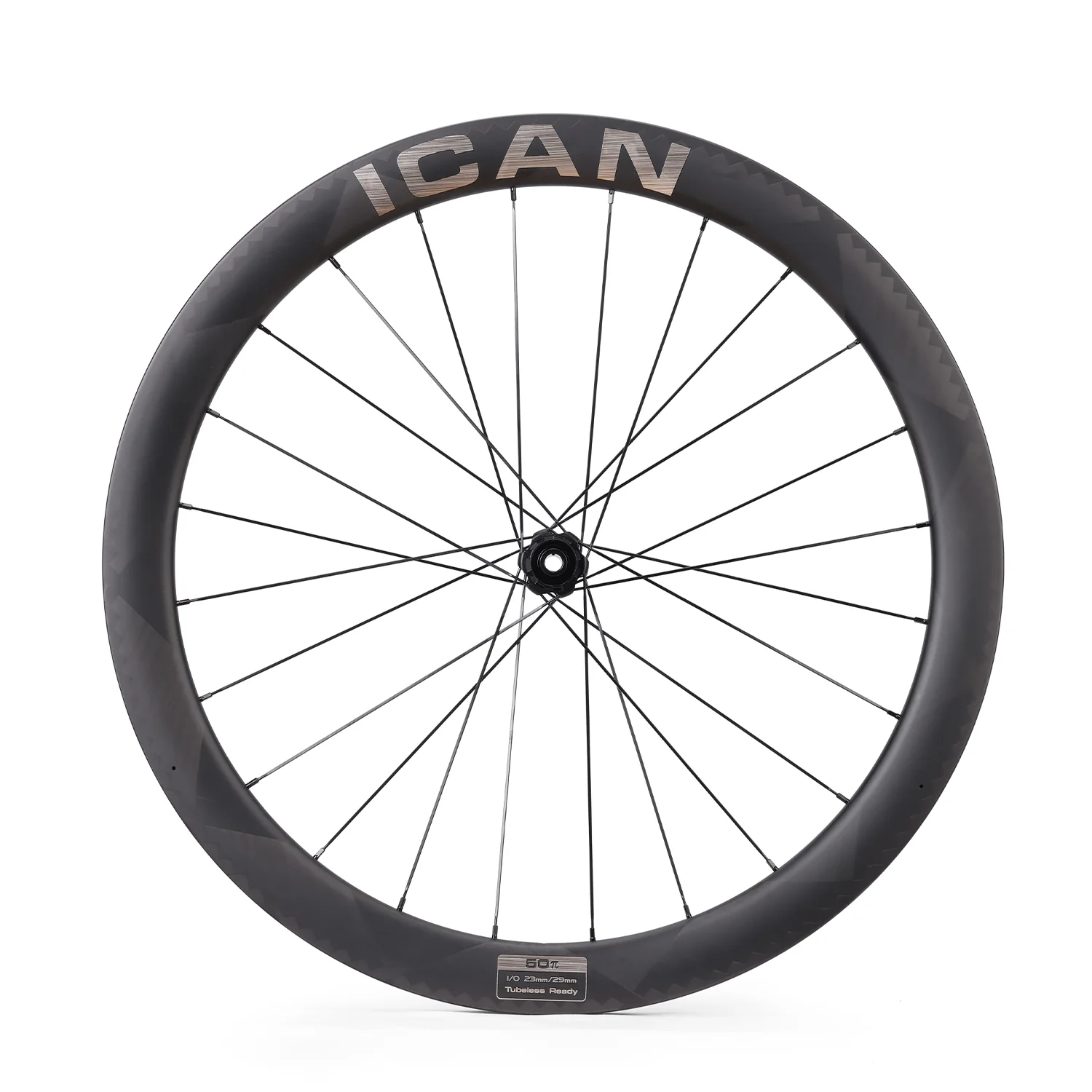

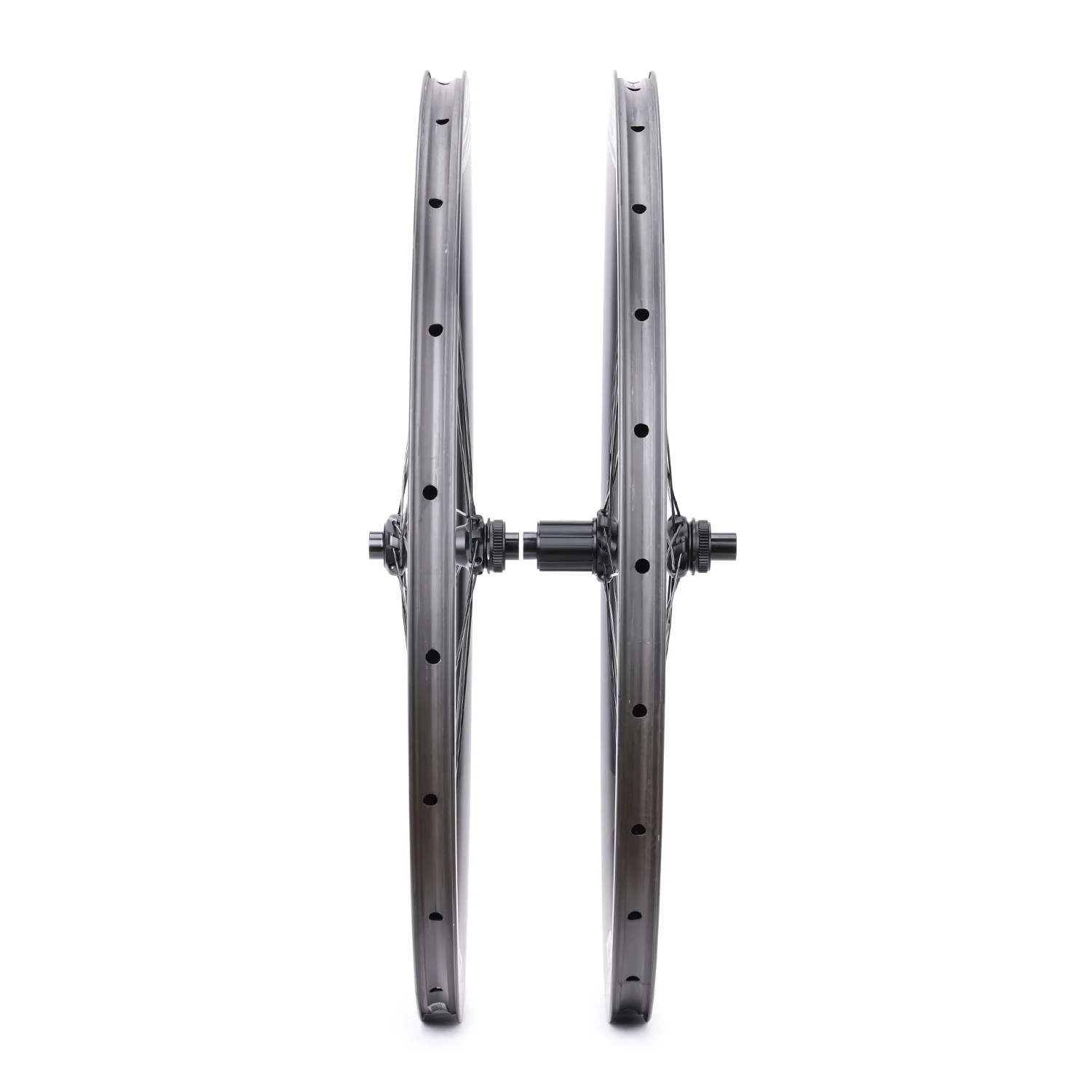

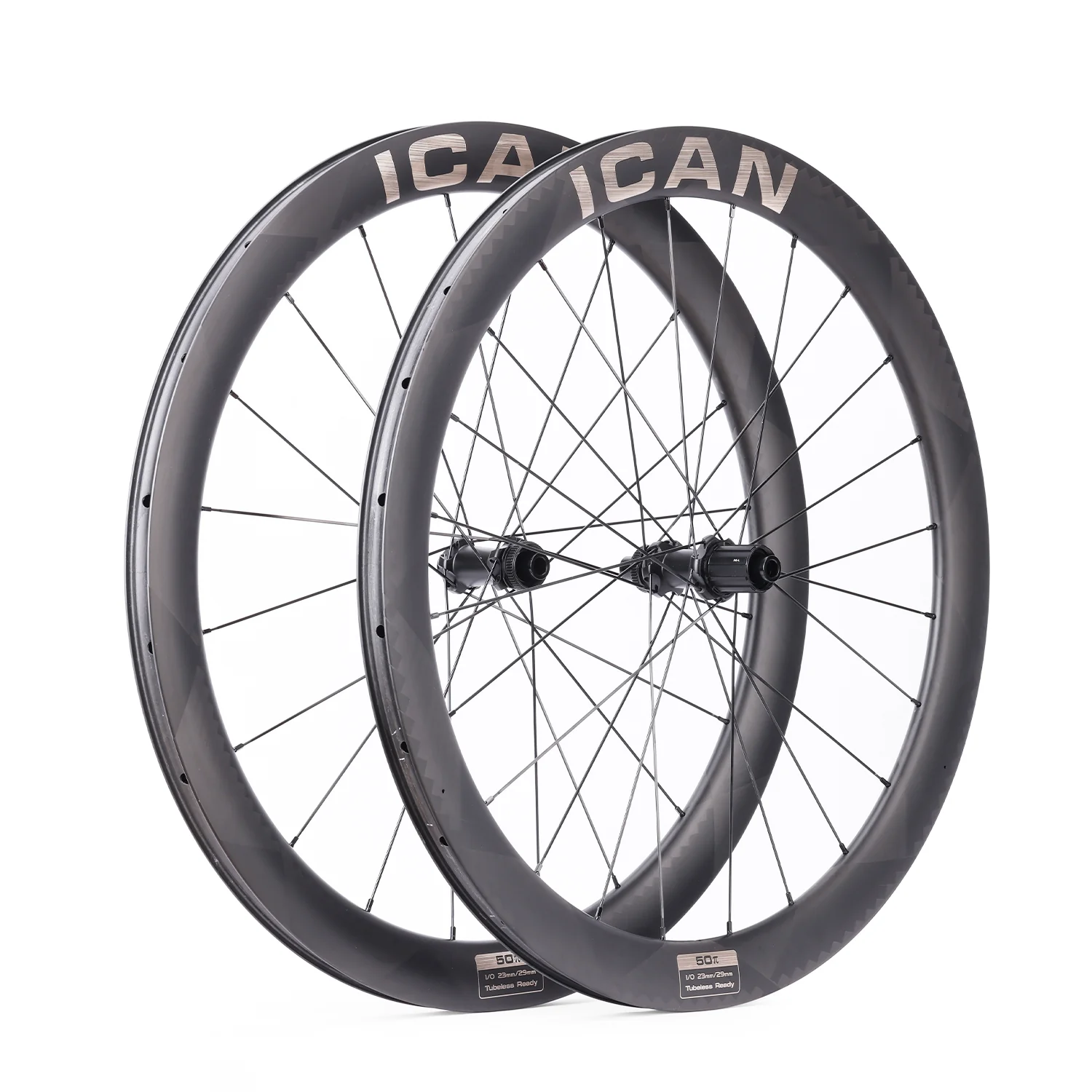

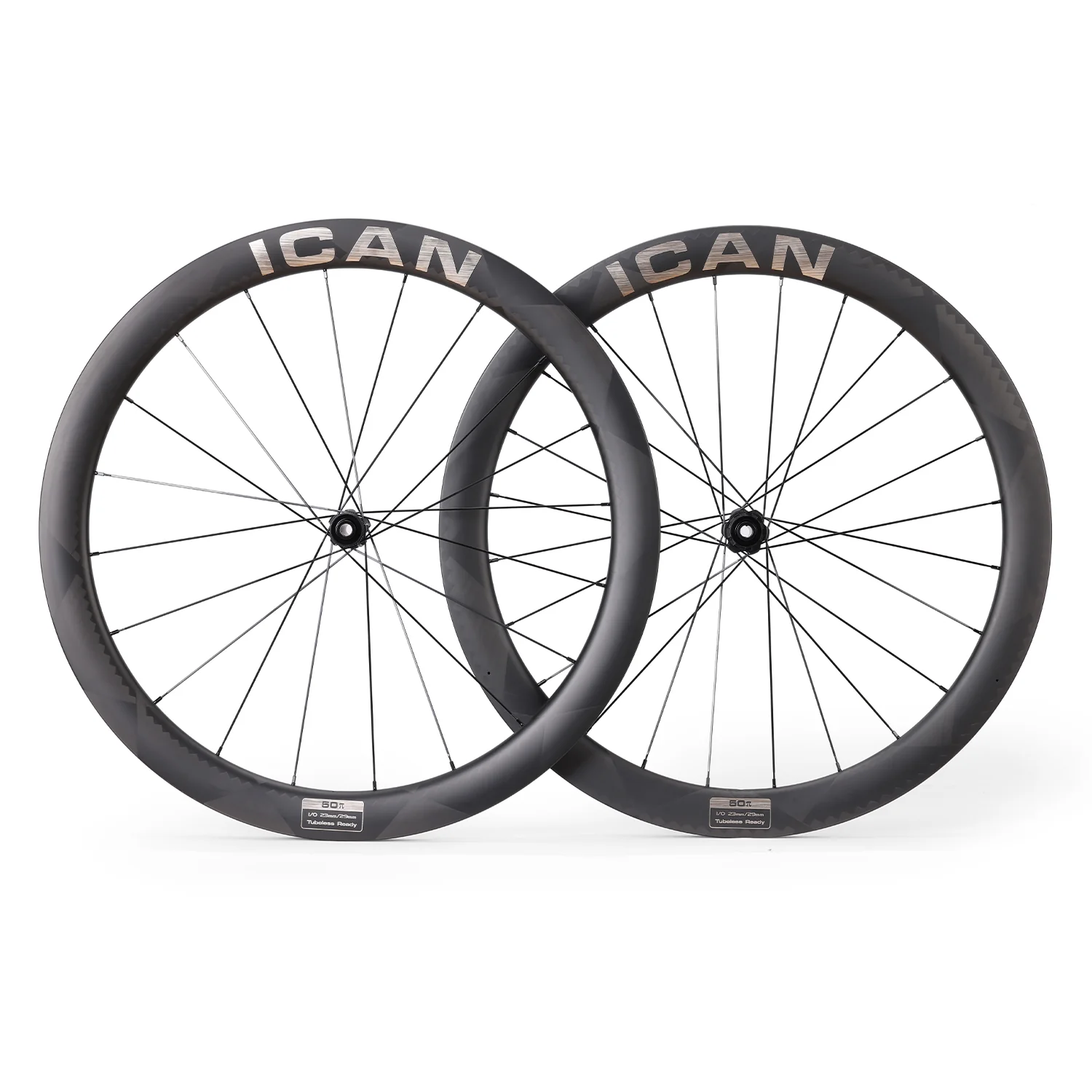

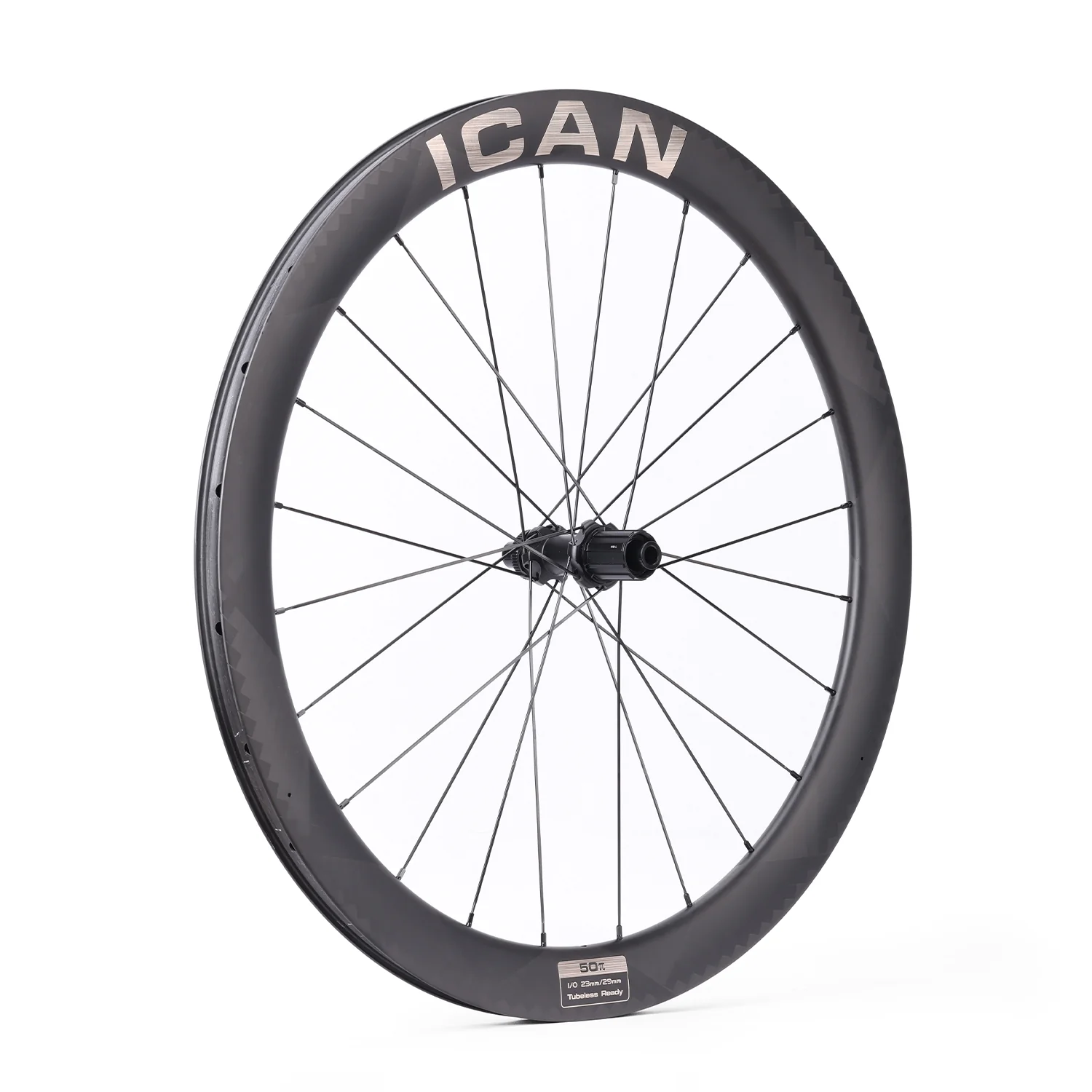

50mm Pie Disc Wheels

50mm Pie Disc Wheels

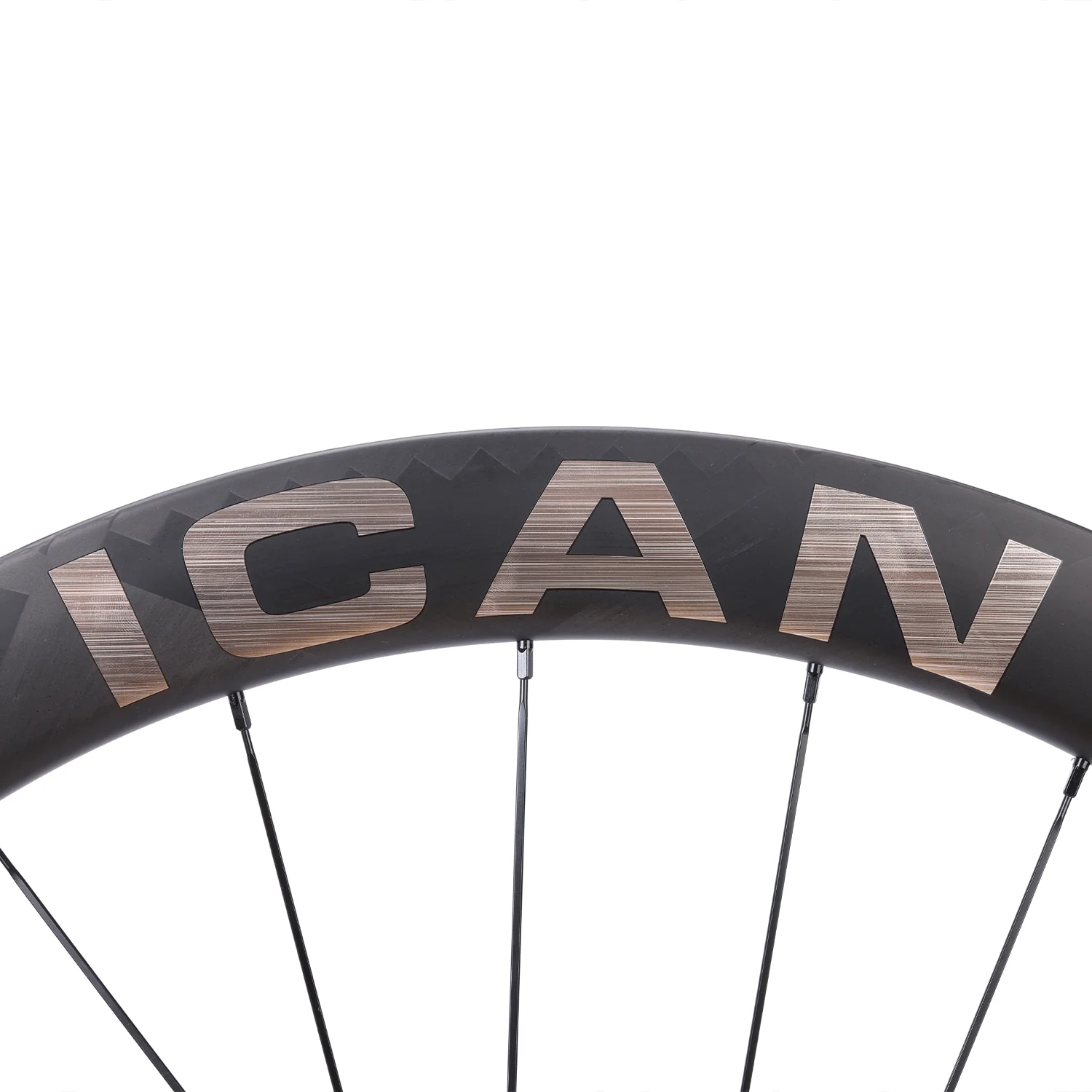

This 50mm rim depth wheelset features a Toray T700 & T800 carbon fiber hybrid weave, with 12K carbon fiber wrapped around the rim to create a three-dimensional diagonal pattern. The rims feature a hooked edge design, compatible with clincher and tubeless tires, and a 23mm inner width provides better tire support. It's equipped with D19 hubs, a center-lock disc brake, and S&S stainless steel bearings for smooth and durable performance. The spokes are Pillar SA1423, with a 20-hole front and 24-hole rear lacing, achieving a balance between stiffness, weight, and aerodynamics, making it suitable for both general road use and racing.

Specification

Type
Carbon Disc Wheelset

Rims
Superlight 50mm Pie

Material
100% Carbon Fiber Toray T700 & T800

Size 700C

Rim
Drills: 20/24 Holes

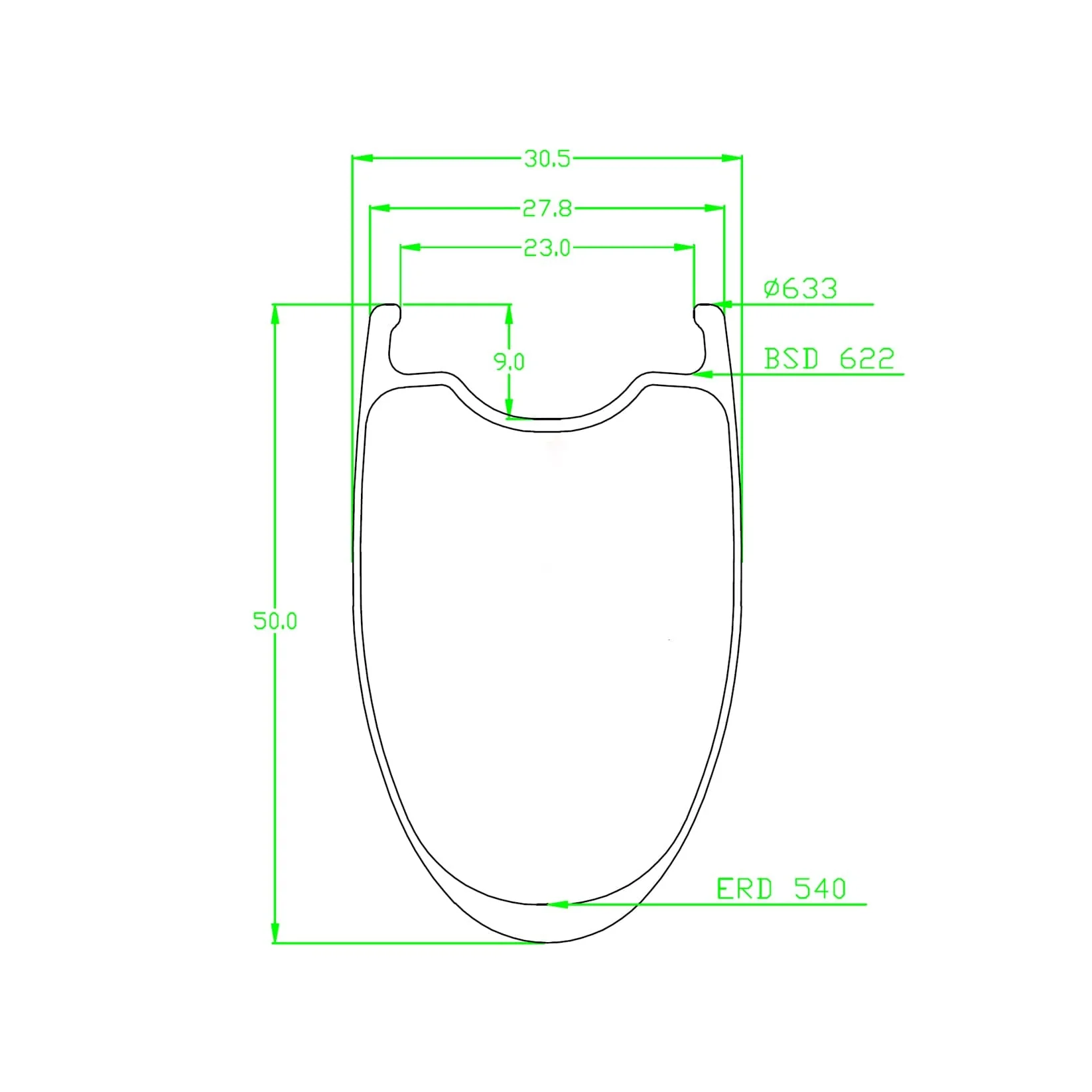

50mm: Outer Width: 27.8mm Inner Width: 23mm

Depth
50mm

Profile
Clincher Tubeless Ready

Hub

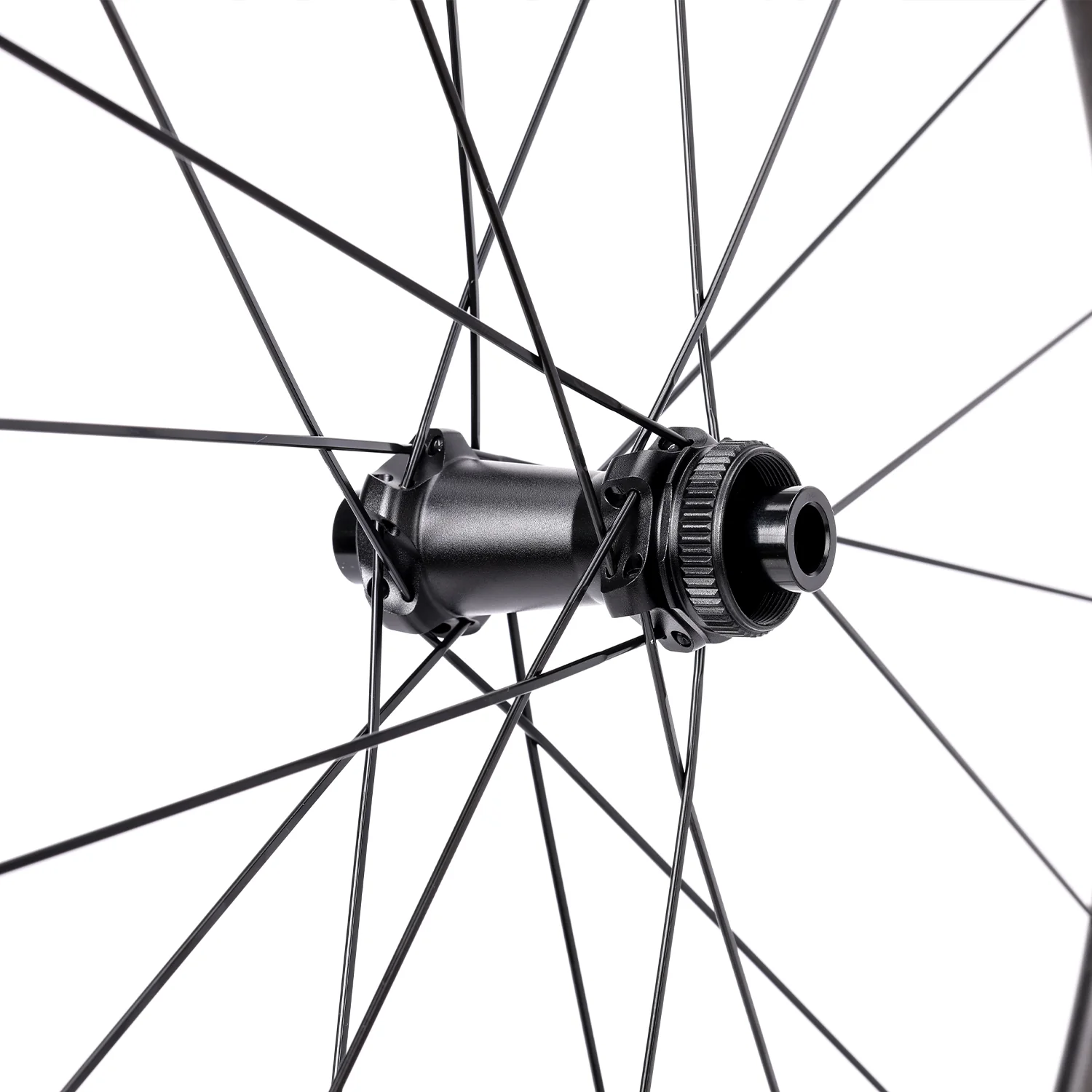

ICAN D19 Hubs with S&S steel bearing
Centerlock, Front: 12x100mm Rear:12x142mm

Spoke
Pillar SA1423
Spoke Count Front: 20 Rear: 24
Spoke Pattern Front: drive side - 2 cross, non-drive side - radial
Rear: drive side - 2 cross, non-drive side - radial

Nipple
Alloy Color: Black

Cassette Compatibility
Shimano 10/11 Speed
Sram XDR

Wheelset Weight
50mm: Total: 1558+-20g Front: 711+-10g Rear: 847+-10g

Braking Surface
No Braking Surface

Recommended Tyre Size
700 x 25-47mm

Rider Weight Limit
110kg

Guarantee
2 years

Package Included
A pair of Wheelset
Rim tape
Valves

Packing Size
81.5cm x 17cm x 65.5cm

Select Depth
Select Freehub
From $174.65

Original: $499.00

-65%
50mm Pie Disc Wheels

$499.00

$174.65
Product image 1
Product image 2

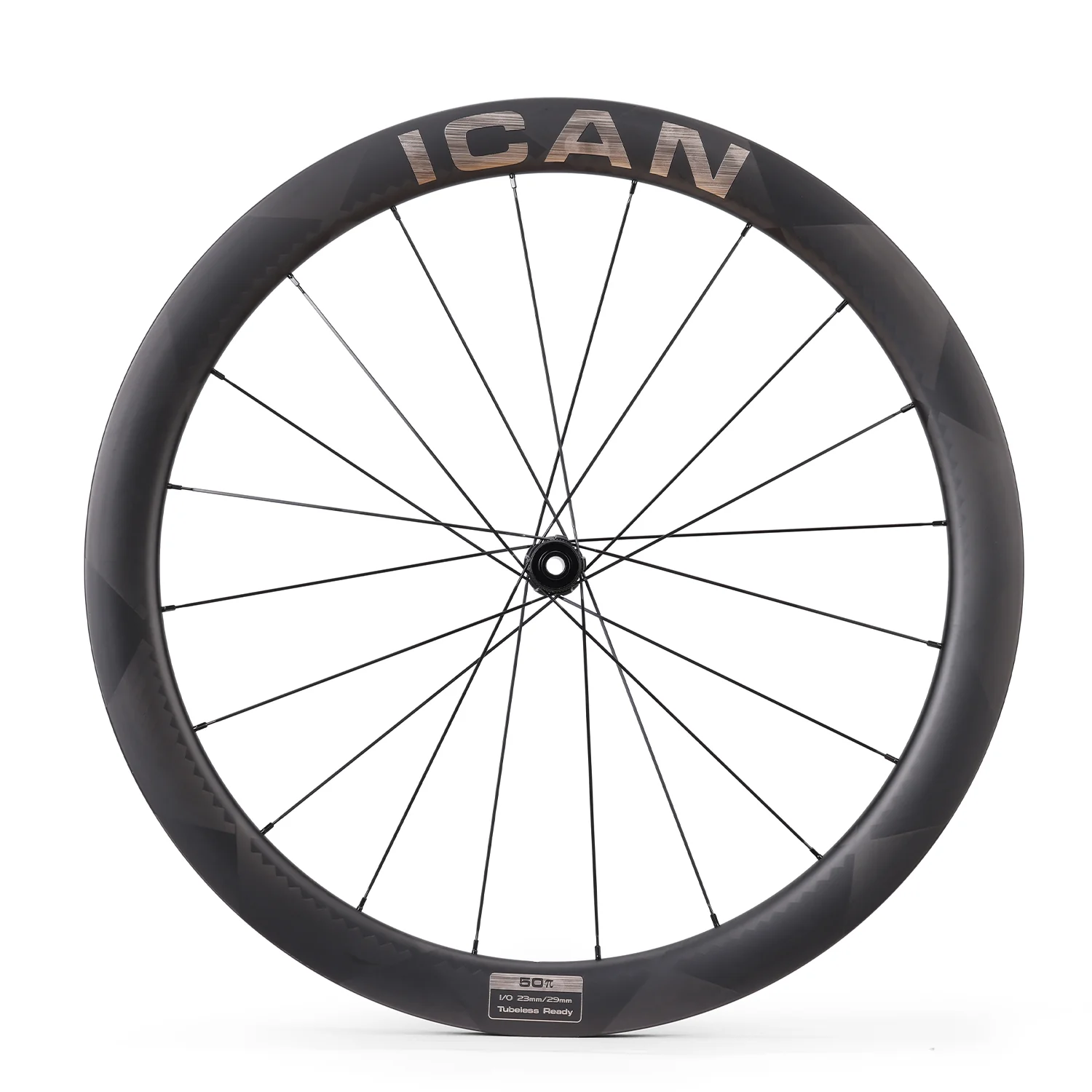

Product image 3
Product image 4
Product image 5

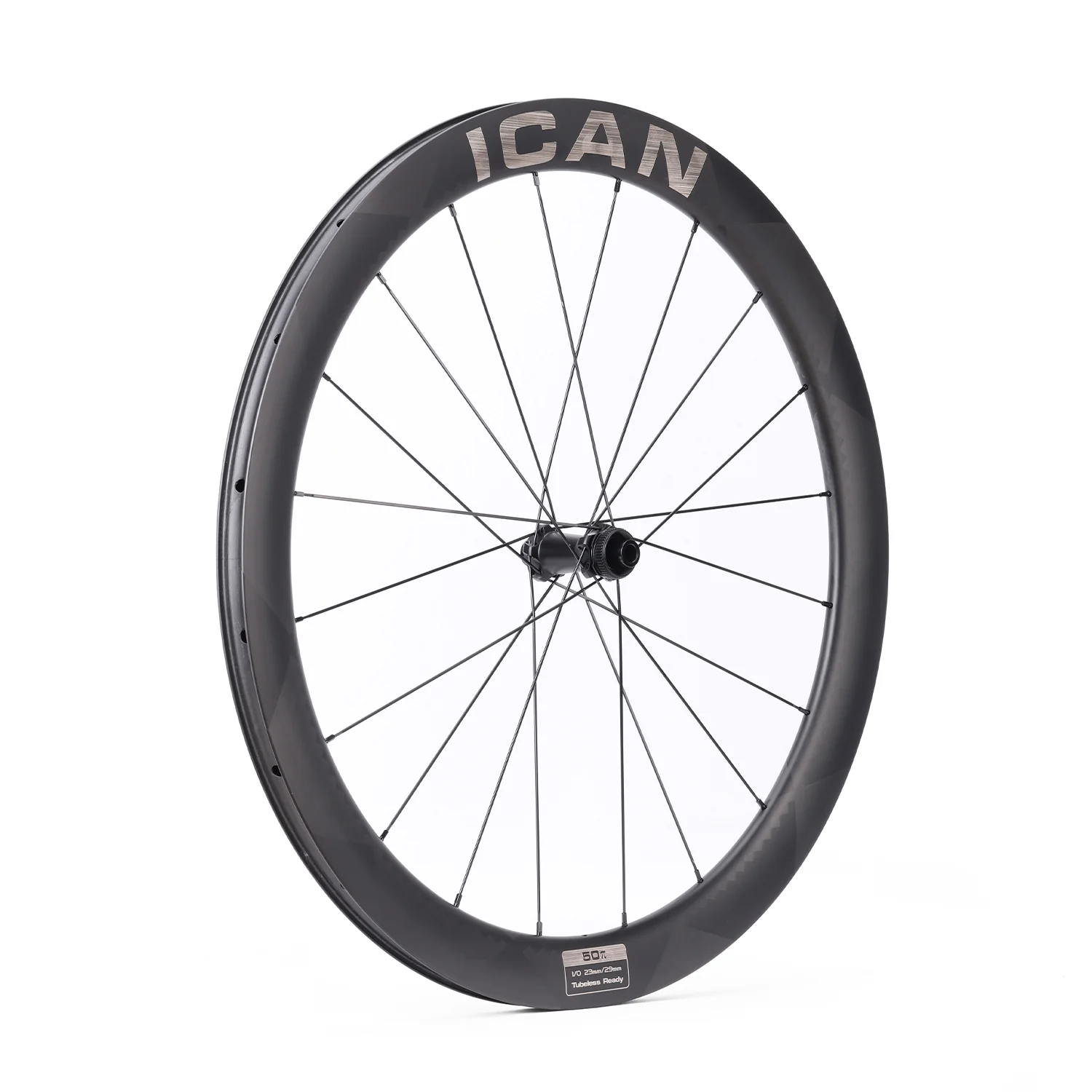

Product image 6
Product image 7
Product image 8

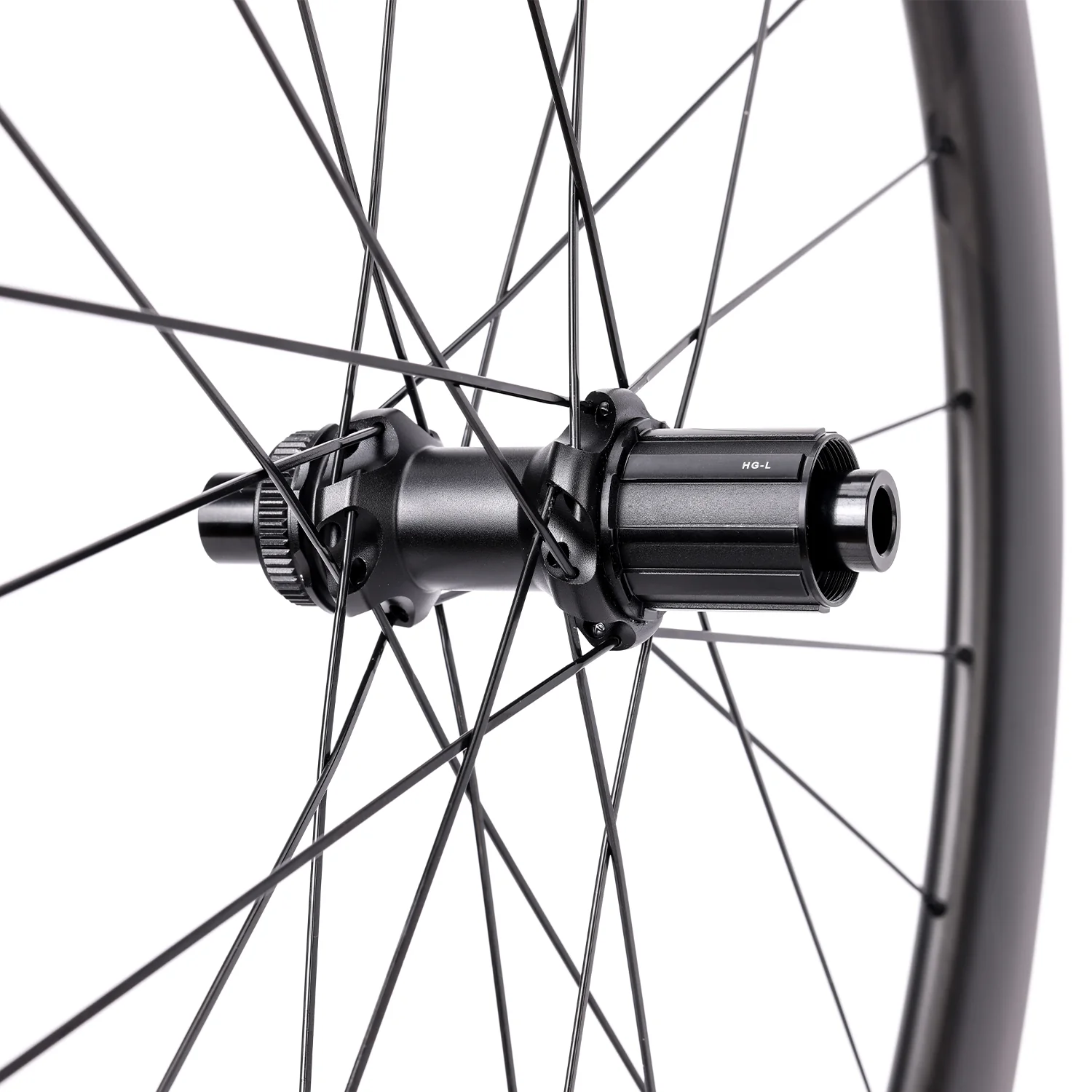

Product image 9
Product image 10
Product image 11

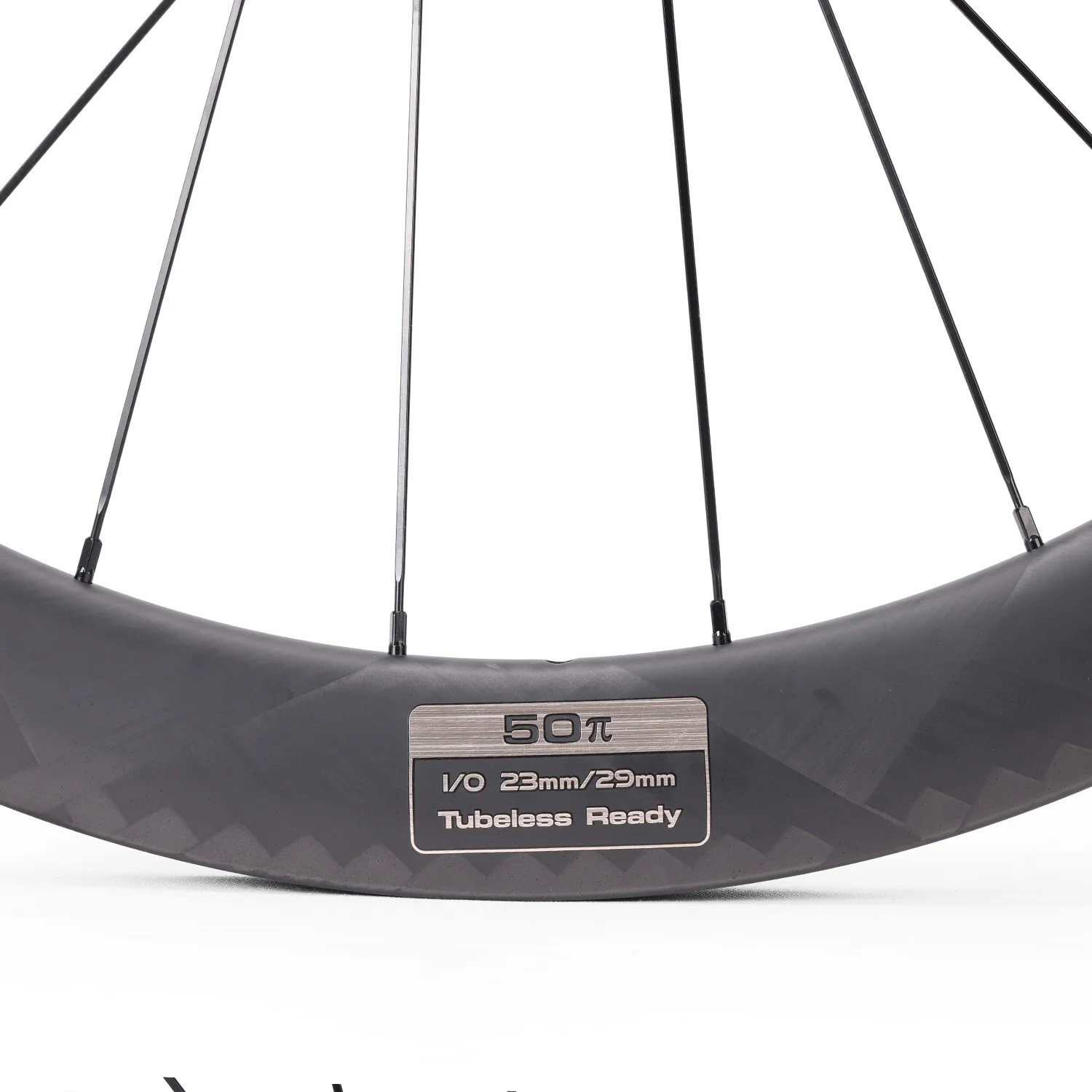

Product image 12

Description

This 50mm rim depth wheelset features a Toray T700 & T800 carbon fiber hybrid weave, with 12K carbon fiber wrapped around the rim to create a three-dimensional diagonal pattern. The rims feature a hooked edge design, compatible with clincher and tubeless tires, and a 23mm inner width provides better tire support. It's equipped with D19 hubs, a center-lock disc brake, and S&S stainless steel bearings for smooth and durable performance. The spokes are Pillar SA1423, with a 20-hole front and 24-hole rear lacing, achieving a balance between stiffness, weight, and aerodynamics, making it suitable for both general road use and racing.

Specification

Type
Carbon Disc Wheelset

Rims
Superlight 50mm Pie

Material
100% Carbon Fiber Toray T700 & T800

Size 700C

Rim
Drills: 20/24 Holes
50mm: Outer Width: 27.8mm Inner Width: 23mm

Depth
50mm

Profile
Clincher Tubeless Ready

Hub
ICAN D19 Hubs with S&S steel bearing
Centerlock, Front: 12x100mm Rear:12x142mm

Spoke
Pillar SA1423
Spoke Count Front: 20 Rear: 24
Spoke Pattern Front: drive side - 2 cross, non-drive side - radial
Rear: drive side - 2 cross, non-drive side - radial

Nipple
Alloy Color: Black

Cassette Compatibility
Shimano 10/11 Speed
Sram XDR

Wheelset Weight
50mm: Total: 1558+-20g Front: 711+-10g Rear: 847+-10g

Braking Surface
No Braking Surface

Recommended Tyre Size
700 x 25-47mm

Rider Weight Limit
110kg

Guarantee
2 years

Package Included
A pair of Wheelset
Rim tape
Valves

Packing Size
81.5cm x 17cm x 65.5cm
